How to make a robot
This course teaches your kid how to make a robot hand that really grabs, from cardboard, drinking straws, and string. Tek hosts four short films: how tendons bend fingers, folding cardboard fingers, threading the strings, and making the hand grab. Plan about 4 minutes of films and 45–60 minutes of building, with a grown-up for the cardboard cuts.
All 4 lessons and the quiz are free on this page. Your kid doesn't need an account. See every lesson
Liked this lesson?
There's a whole world of this.
In Kubrio Worlds your kid explores places, asks the people who made them anything, and makes their own things. You set the screen time.
3 days free, then $49 $19 a month per kid.
▶ 1:45 tourWhat your kid makes

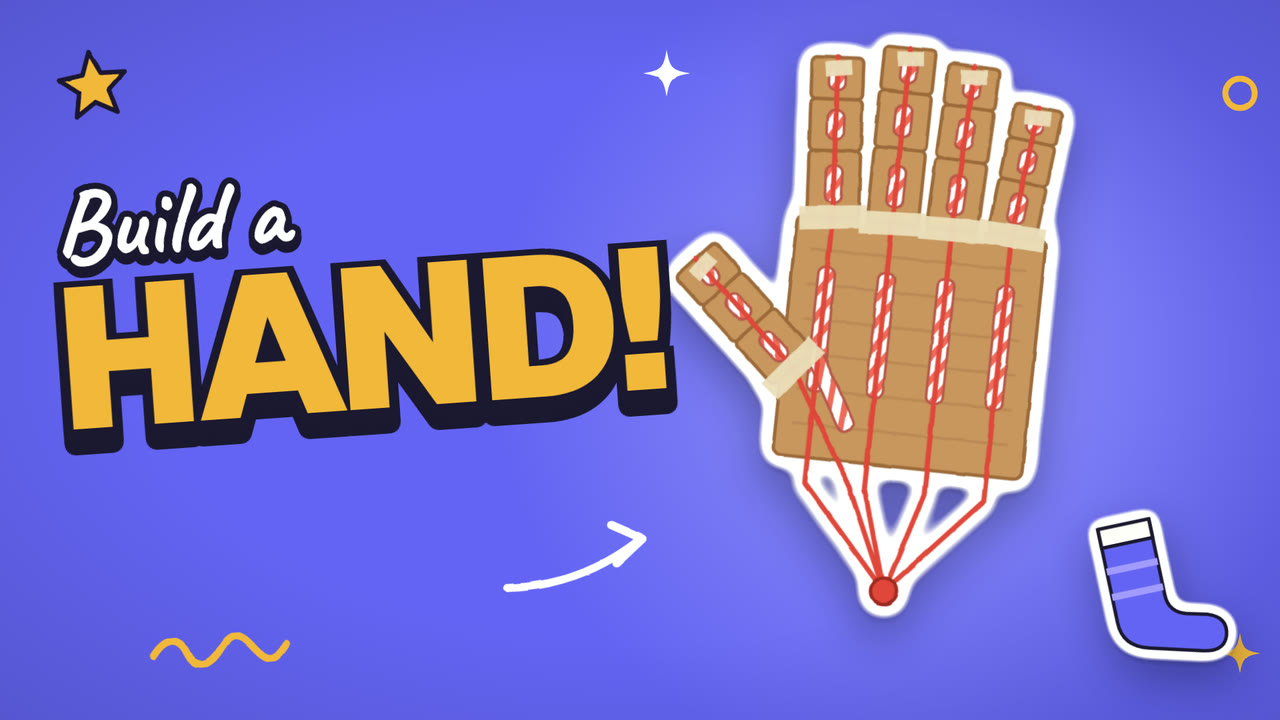

Your kid ends with a cardboard robot hand with five bending fingers that close when the knot is pulled, strong enough to pick up a paper cup or a sock. It's also a first look at how real robot hands and real fingers work.
- Ages
- 6 to 13
- Time
- 4 films, about 4 minutes, then 45–60 minutes of building
- You need
- Cardboard, a few drinking straws, string, tape, pencil and paper, scissors for the straws, and a grown-up for the cardboard
- Host
- Tek
The 4 lessons
Lesson 1. Hands like yours
Tendons work like strings: pull them, and fingers bend.
- Trace your hand on paper
- Draw a line where each finger bends
- Draw the strings down to your wrist
Where: Paper
Lesson 2. Cut and fold the fingers
Three folds in a cardboard strip make a finger that bends.
- Draw a palm and five finger strips, and a grown-up cuts them
- Draw three lines on each strip and fold every line
- Tape four fingers on top of the palm and the thumb on the side
Where: At home
Lesson 3. Thread the strings
Straw pieces guide each string, and pulling it bends the finger.
- Cut a straw into short pieces and tape one on each part of a finger
- Push a string through the straws and tape it at the fingertip
- Hold the palm and pull the string
Where: At home
Lesson 4. Make it grab
All five strings in one knot close the whole hand.
- Tie the five strings together in one knot
- Pull the knot and grab something light, like a paper cup or a sock
- Give your robot hand a job and show your family
Where: At home
Take the quiz
Tek asks 3 questions about the films. Get 2 right and you finish the course.
Transcript
Lesson 1: Hands like yours
Hi, I'm Tek. Today you build a robot hand. A real one, that grabs!
First, look at your own hand. Make a fist. Now open it. How does it do that?
Inside your hand are strong strings called tendons. They run from your fingertips into your arm.
Wiggle your fingers, and touch your arm. Feel it move? Your arm pulls the strings, and your fingers bend!
Robot hands work the same way. Pull a string, and a robot finger bends.
Get your stuff. Cardboard, a few straws, string, tape, and a pencil. A grown-up does the sharp cutting.
Your turn. Trace your hand on paper. Draw a line where each finger bends. Draw the strings to your wrist. Then press Next.
Lesson 2: Cut and fold the fingers
Got your hand drawing? Let's make the robot's fingers!
Draw a big square on cardboard for the palm. Then draw five long strips, one for each finger.
Cardboard is tough to cut. So ask a grown-up to cut them out. You draw, they cut.
Now look at your finger. It bends in three spots. So draw three lines on each strip.
Fold on every line. Fold, and open. Fold, and open. Now your finger can bend!
Tape four fingers along the top of the palm. Tape the thumb on the side.
Your turn. A grown-up cuts a palm and five strips. Draw three lines on each. Fold every line. Tape them on. Then press Next.
Lesson 3: Thread the strings
Your robot hand has fingers. Now it needs tendons!
Cut a straw into short pieces. Straws are soft, so kid scissors work fine.
Tape one little piece on each part of a finger. Leave a gap at every fold.
The straws are guides. They keep the string right where it should be.
Now push a string up through the straws, all the way to the tip. Tape the end to the fingertip.
Ready? Hold the palm, and pull the string. The finger bends!
Your turn. Tape straw pieces on every finger. Thread a string through each one. Tape it at the tip, and pull. Then press Next.
Lesson 4: Make it grab
Last step. Let's make your robot hand grab!
Gather all five strings below the palm. Tie the ends together in one knot.
Hold the palm, and pull the knot. Every finger bends, and the hand closes!
Now grab something light. A paper cup. A sock. A ball of paper. Got it!
Every robot needs a job. Mine hands out snacks. What job will yours do?
Show your family. Pick something up, and hand it over. Beep, boop!
Your turn. Tie the strings. Grab something light. Give your hand a job. You built a robot hand!
Free guides to practise with
Questions parents ask
Is the cutting safe for my kid?
A grown-up cuts all the cardboard, and the films say so. Your kid cuts only drinking straws, which kid scissors handle fine, and does the drawing, folding, taping, and threading.
Do we need a robot kit or batteries?
No. Cardboard, a few straws, string, tape, and a pencil are enough. The hand moves when your kid pulls the strings, the same way tendons move real fingers.
How long does it take?
The four films take about 4 minutes. Building the hand takes about 45–60 minutes, and the folding and threading can be split over two days.
